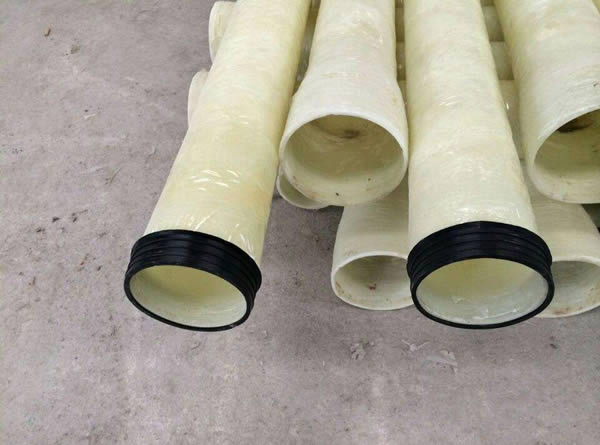

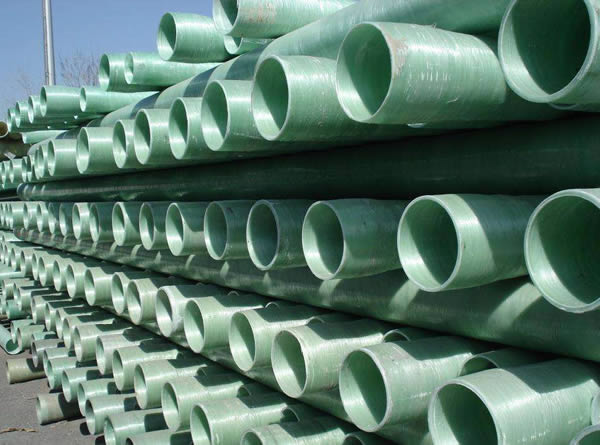

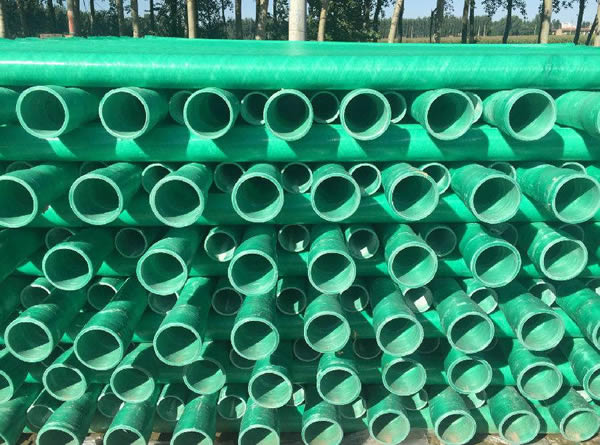

Advantages and purpose of FRP cable casing pipe
Advantages
1. High strength,smooth inner surface (friction coefficient is small,the pass of the cable is convenient and smooth,no damage for the cable),light weight (density only 1/4 of the steel pipe’s )，convenient transportation,easy installation,no deformation.
2. No electric corrosion,nonmagnetic,suitable for the single-core cable,and no vortex occurs.
3. Good chemical resistant,especially resisting rain water or seawater.
4. Heat-resistant,it can be used in the condition of 120℃ for long time.
5. Insulation,chemical-resistant,rustless.Its service life is more than 50 years without maintenance,invest one time and benefit for life.
Purpose
The FRP cable casing pipe is suitable for the laying of the cable be used for electric power and communication at various occasions.Especially the cable which passes the traffic arteries,river,bridge,etc special environment,it can represent the easy construction,high strength,etc advantages adequately.The FRP cable casing pipe is widely used for electric power,communication,traffic,infrastructure establishment of civil aviation airport,etc.
Grade code:
N -general type
R -reinforced type
E -super powerful type
Type of products: DB-N,DB-R，DB-E.
Specification and overall size of FRP cable casing pipe
List of size of FRP cable casing pipe
|
Nominal inner diameter D |
Nominal thickness t |
Inner diameter of socket end D1 |
Depth of socket End S |
Nominal Length L | ||||
| DB-N | DB-R | DB-E | DB-N | DB-R | DB-E | |||
| 100 | 3 | 5 | 8 | 116 | 120 | 126 | 80 | 4000 |
| 125 | 5 | – | 8 | 145 | – | 151 | 100 | 4000 |
| 150 | 5 | 8 | 10 | 170 | 176 | 180 | 100 | 4000 |
| 175 | 8 | 10 | 12 | 201 | 205 | 209 | 100 | 4000 |
| 200 | 8 | 10 | 14 | 226 | 230 | 238 | 120 | 4000 |
Note: For the special specification shall be made according to the client’s requirements.
Mechanical properties of FRP cable casing pipe
| No. | ltem | Unit | Index |
| 1 | Bend strength | MPa | ≥135 |
| 2 | Tensile strength | MPa | ≥120 |
| 3 | Impact property | – | no cracks |
| 4 | Stiffness while the variety ratio is 10% | MPa | DB-N,DB-R,DB-E ≥1.2≥2.4≥5.0 |
| 5 |
Heat distortion temperature under bend load (Maximum bend positive stress is 1.81Mpa) | ℃ | ≥130 |
| 6 |
Retention ratio of bend strength after soaked in water | % | ≥80 |
| 7 | Barcol hardness | – | ≥35 |
| 8 | Index of oxygen | % | ≥26 |
| 9 | Sliding friction coefficient | – | ≥0.34 |
| 10 | Heat resistance factor | ℃•m/W | ≥4.8 |
